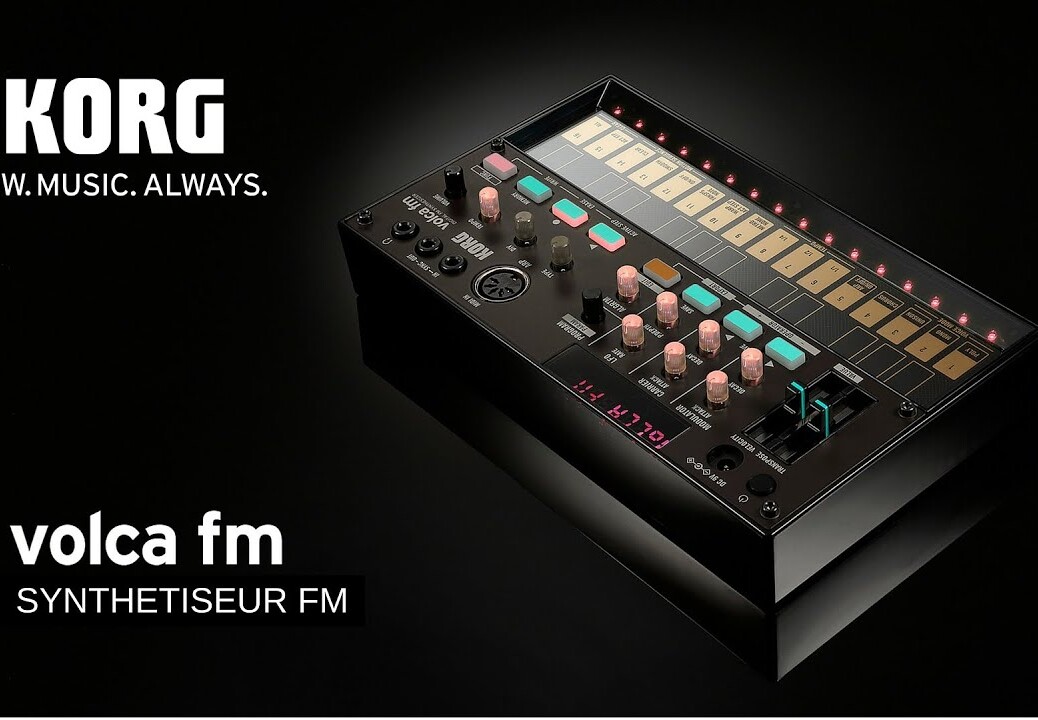

KORG Volca FM : la synthèse FM en format mini (vidéo de la Boite Noire)

Le Volca FM est un synthétiseur numérique FM à 3 voix qui reproduit complètement un moteur classique de modulation de fréquence.

▶ http://www.laboitenoiredumusicien.com/korg-modules-analogiques-volca-fm-p500512/

Le séquenceur 16 pas qui est l’une des caractéristiques de la famille Volca offre de nouvelles fonctions telles que WARP ACTIVE STEP et PATTERN CHAIN qui vous permettront de faire des échantillons rythmiques encore plus puissants.

———————————————————————-
Volca fm Specifications :

Keyboard

Multi touch keyboard

Synthesizer

Type:

FM synthesis

Maximum Polyphony:

3 voices

Structure:

6 operators, 32 algorithms

Number of Programs:

32

Main Edits:

Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm

Available to edit full parameters for each operator in Edit Mode

Controls:

Transpose, Velocity, Octave, Arp (Type, Div)

Arpeggiator Types:

9 (each 3 patterns of “Rise”, “Fall”, and “Random”)

Voice Modes:

Poly, Mono, Unison

Effect

Chorus

Sequencer

Number of Parts:

1

Number of Steps:

16

Number of Recording Patterns:

16

Controls:

Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome

Connectors

Audio Output:

Headphones (3.5mm stereo mini jack)

Sync:

Sync In (3.5mm monaural mini jack, Maximum input level: 20V)

Sync Out (3.5mm monaural mini jack, Output level: 5V)

When two units of volca fm, available to export the sound programs and sequence data from a volca fm to the other one

MIDI:

In

Available to convert and load SYS-EX/SYX file created on the Yamaha DX7

Power

Power Supply:

AA alkaline battery x 6 or AA nickel-metal hydride battery x 6

Or AC adapter (DC 9V) (optional)

Battery Life:

Approximately 10 hours (using alkaline batteries)

Dimensions (W x D x H)

193 x 115 x 40 mm / 7.60” x 4.53” x 1.57”

Weight

360 g / 12.70 oz. (Excluding batteries)

Others

Included Items:

AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List

Accessories:

AC adapter (DC 9V) KA-350

* All product, company, and standard names are trademarks or registered trademarks of their respective holders.

* Appearance and specifications of products are subject to change without notice.

———————————–
